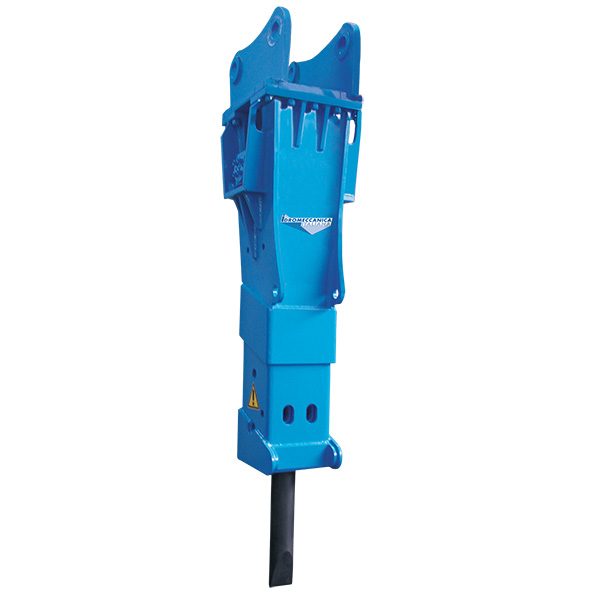

IMI 140 R – Hydraulic hammer for excavators 20-30 ton

IMI 140 R
Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
These models are very popular and suitable for the most demanding jobs, demolitions of works in reinforced concrete, excavations of big sewerages, quarry works, excavations of tunnels.

Description



Category: Hydraulic breakers Product: IMI 140 R
Carrier weight (t) 19 ÷ 25
Weight (kg) 1400
Height with standard tool (mm): 2270
Height without tool(mm): 1720
Max. breadth (mm): 580
Chisel diameter (mm): 120
Required oil supply (l/min.): 130 ÷ 190
Oil pressure adjusted to the hammer (bar) 120 ÷ 160
Maximum back pressure (bar) 12
Blows per minute: 450 ÷ 850
Energy per blow (J): 2900
Inner diam. IN hose/OUT hose (mm) 25/25

Use

PREMISE: the IMI range is made up of mainly 20 models, available in a variety of versions, with an operative weight ranging from 80 to 3000 KG suitable for big or small excavators, backhoe loaders and other carrier machines with weight from 0,7 to 50 tons.

Use IMI 140 R: These models are very popular and suitable for the most demanding jobs, demolitions of works in reinforced concrete, excavations of big sewerages, quarry works, excavations of tunnels.

Customizations

SELF LUBRICATING SYSTEM

* upon customers’ requests the IMI Hydraulic Breakers can be provided with a special self lubricating system, that requires no additional installation on the excavator.
The system is placed directly on the hydraulic breaker and it works thanks to the vibration and blows of the hydraulic breaker itself.
Thanks to flexibility and versatility, the company provides a number of special versions of the same models, all customizable.

Advantages

Premise
IMI Hydraulic Breakers are supplied with a tested operative system that makes its maintenance easy and cheap, considerably reducing delays caused by downtime.

Advantages

  • High productive performance of the Hydraulic Breakers
  • Low vibration level:
    Less stress transmitted to the carrier’s arm, to the operator and on the environment and adjacent structures.
    (the Hydraulic Breakers are dampened hydraulically by means of a diaphragm with nitrogen and also mechanically through special rubber shock absorbers).
  • All new models of the IMI range are particularly fit for new machines.
    (equipped with hydraulic pressurized systems)
    This means that the Hydraulic Breakers can tolerate high backpressure, a lot better than previous models.

* Important:
It is also possible to provide top brackets and quick hitches that can be mounted on any type of excavator.

What else do we offer you?

40 Years Experience

Specialized since 1975 in design and manufacturing of Hydraulic Breakers and other quarry and demolition equipment.
100% Made in Italy

Highest Quality

All our Hydraulic Breakers, Products and Spare Parts areamong the most reliable on the market.
ISO-9001 Quality Certified Company System
